Documentation Settings

The Settings option groups:

• General settings
• Admins
  • Add admin
  • Edit admin
  • Delete admin
• Address Book
  • Add entry
  • Edit entry
  • Delete entry
• Limits international calls
  • Edit limit

General settings

Currently one can set just the name of the script to handle the leaving of voicemails. This is made by default when FreeSentral is installed and should not be modified unless one is totally sure of that action. The default value for this setting is:

external/nodata/leavemaildb.php

Admins

The admin has the role in charge with the maintenance of the system. It has unlimited access to configurations, setup and any kind of changes inside FreeSentral. The administrator role is available via 'admin' account. The admin account is different from the user account. The user account has an extension number associated with it. The admin account doesn't have an extension number associated with it, but the administrator has access to all the user accounts in the system.

Add admin

• Go to the menu Admins.
• Select the sub menu Add Admins.
• Fill in the box with the necessary information.
• Press Save to complete the operation.
• Press Reset to delete the information and write a new one.

Edit admin

• Go to the menu Admins.
• Select Manage from the sub menu. Here you have a list with all the admins you've added so far.
• Press the edit button associated with the admin account you want to edit.
• Write your changes.
• Press Save to complete the operation.
• Press Reset to delete the information and write a new one.

Delete admin

• Go to the menu Admins.
• Select Manage from the sub menu. Here you have a list with all the admins you've added so far.
• Press the delete button associated with the admin account you want to delete.

Address Book

The address book entries are numbers associated with a person's name. This allows you to call a certain extension by typing the person's name(the digits corresponding that person's name).

Add entry

• Go to the menu Address Book.
• Press Add shortcut.
• Fill in the box with the required information.
• Press Save to finish the operation.
• Press Reset to delete the information and write a new one.

Edit entry

• Go to the menu Address Book.
• Press the edit button associated with the entry you want to edit.
• Fill in the box with the required information.
• Press Save to finish the operation.
• Press Reset to delete the information and write a new one.

Delete entry

• Go to the menu Address Book.
• Press the delete button associated with the entry you want to delete.

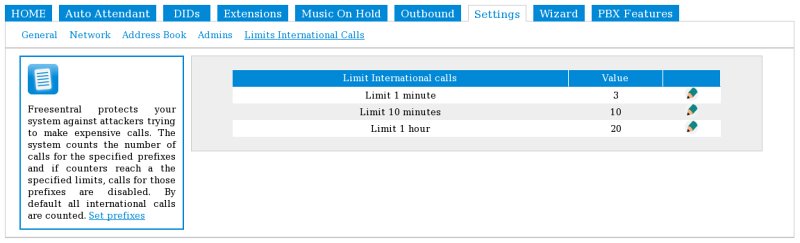

Limits international calls

Freesentral protects your system against attackers trying to make expensive calls. The system counts the number of calls for the specified prefixes and if counters reach the specified limits, calls for those prefixes are disabled. By default all international calls are counted. Below are the default values for international calls.

Edit limit

• Go to Limit International Calls
• Press the edit button associated with the entry you want to edit.
• Press Save to finish the operation.
• The change will take up to 50 seconds to take place in yate.
